Supply unit VFU, RF
- Product category: Hydraulic products
Smart valve solution for rotating functions
The supply unit acts as a distribution centre for the supply of pressurized hydraulic oil to the other valves in the control system.

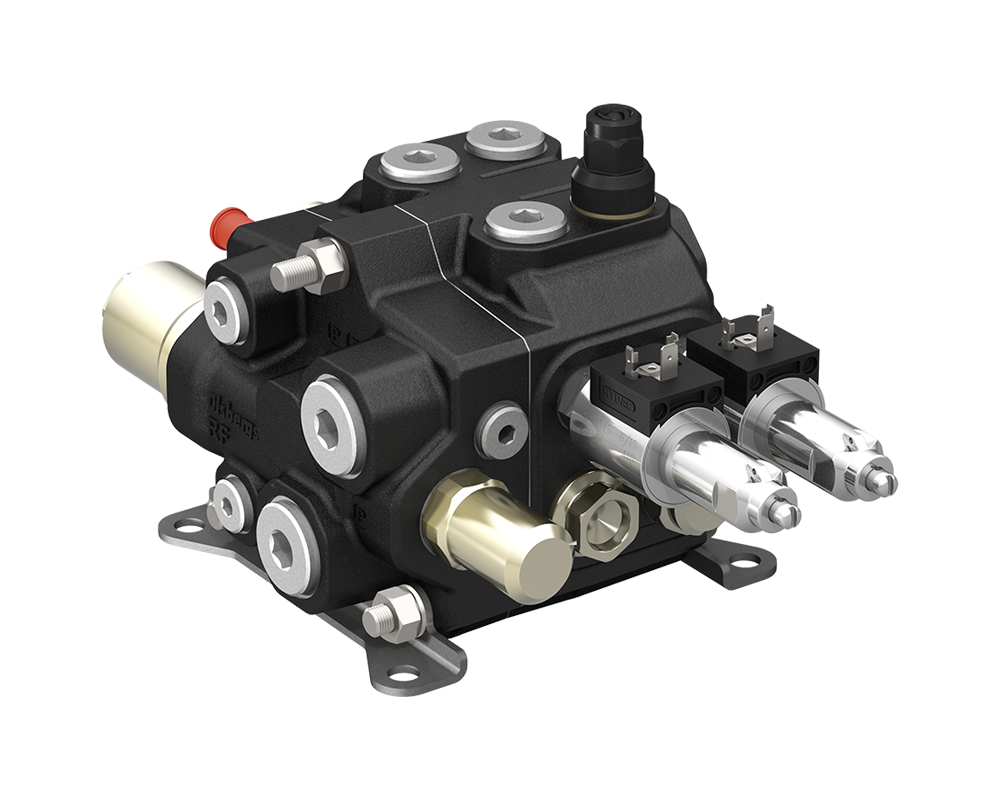

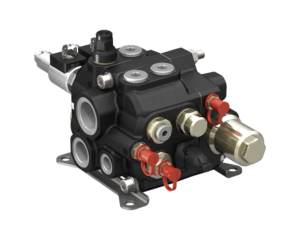

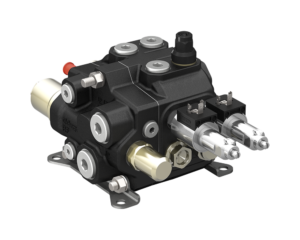

Supply unit VFU, RF
The supply unit VFU, RF consists of inlet section VFU and outlet section RF and is used in electrical controlled hydraulic system. The supply unit acts as a distribution centre for the supply of pressurized hydraulic oil to the other valves in the control system.
Simple installation with supply unit VFU, RF
This is especially useful in cases where valves are physically dispersed such that direct lines between the units are not expedient. The hydraulic pump and tank are then connected to the supply unit. Hoses are run from there to the main valve located above the centre of rotation and to valves that handle e.g. outriggers.
Few lines through the centre of rotation
The number of lines that must pass through the narrow sector at the centre of rotation is minimized. This allows for simple but extremely functional hose runs.
Max. pump pressure: 45,0 MPa
Max. flow: 300 l/min
Filter information:
Filter cartridge: 20 my absolute
Flow rate: 10 l/min
Burst pressure: min 100 bar
Connections:
VFU-inlet:
Tank: G 1”, G 1/2”
Pump: G 3/4”
Signal: G 3/8”
Constant flow: G 1/2”
RF-outlet:
Tank: G 3/4”, G 1/4″
Pump: G 3/4”
Signal: G 1/4”
Reduced: G 3/8”
